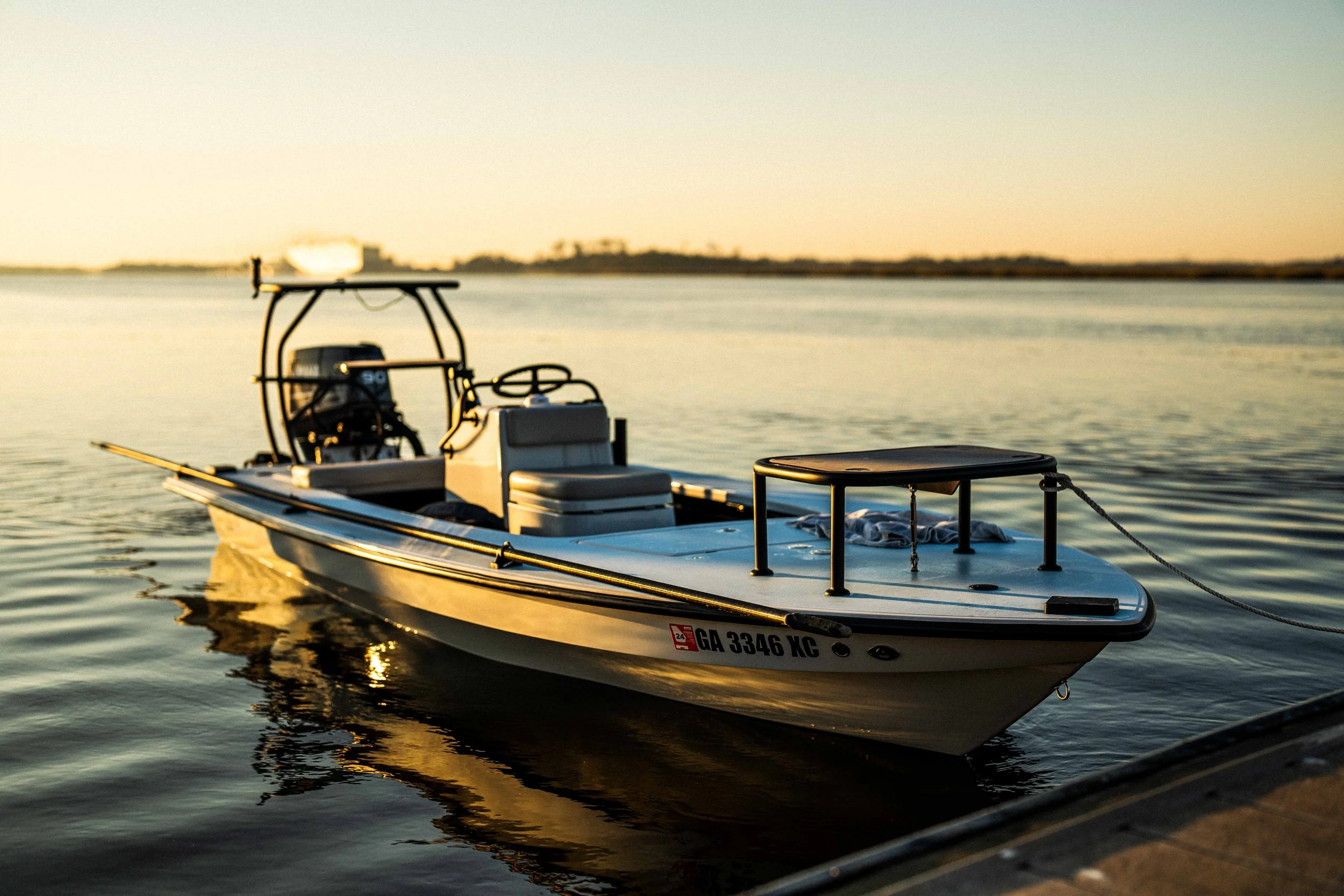

islamorada 18
SPECS AND HIGHLIGHTS
New, Patented hull design with massive high-volume built-in spray rails, a staggered split chine below the waterline for silent poling and a radius transom. No sponsons.
Deadrise: 12 degrees
Beam: 6’8”
Draft:
100% Carbon Fiber with 70hp: 7”
100% Carbon Fiber with 90hp: 8”
Speed:
100% 70hp: 43-46MPH
100% 90hp: 48-52MPH
Weight: 535lbs (unrigged 100% Carbon Fiber)
Max HP: 90hp
8” Pad
Engine options: Yamaha 70, Yamaha 90, Yamaha 90 SHO
Material/Lamination options: base carbon and full carbon
Fuel tank: 23, 32 and 38 Gallon
Color options: Matterhorn white, Whisper Gray, Lagoon Blue, Courtesan Blue, Tortuga Green, Abalone Green, Medium Gray, or choose your own custom colors
All Chittum Skiffs are water tested and checked by each department before delivery.
-
Standard motor is the Yamaha 70 4-stroke with stainless steel prop, premium shifter.
Custom stainless steel and aluminum trailer with walk boards. Three aluminum mag wheels and Ranier radial trailer tires, and LED lights.
Gelcoat finish with a choice of six standard colors.
Oversized hatch gutters with rubber gaskets and exclusive latch gutter.
UFLEX hydraulic steering with high-speed 2.5 lock-to-lock/flush mounted pump under console.
Stainless steel 13” Edson steering wheel with ball bearing suicide knob, black or silver.
Two large dry storage boxes outboard on each side aft with easy access lockable hatches accessible from boat or trailer.
Large dry-storage under forward deck.
Anchor/dry storage/trash compartment center aft.
All hatches fitted with Gemlux 316 stainless steel flush-mounted positive tension latches, Gemlux 316 stainless steel hinges, and stainless steel gas shocks.
High-capacity carbon fiber rod racks under gunnels with large diameter flush fly rod tubes running fore and aft. Cockpit sides and rod racks made of carbon fiber and covered in Marine Mat.
23 gallon fully baffled aluminum marine fuel tank.
Poling platform anodized aluminum with SeaDek pad.
LED lights in all compartment lockers/hatches/console/bait wells/under gunnels.
LED Navigation lights: Billet Stainless Steel shark eye lights by Livorski. LED stern light.
V marine push-pole holders.
Engine manufactured fuel filter.
Console flush mount switches
12-volt Optima battery with on/off switch in console.
1500 GPH rule bilge pump, with ultra automatic switch.
Lectrotab 316 stainless steel 12”x 12” trim tabs.
Heavy duty rub rail.
Gemlux stainless bow and stern eyes.
All wiring is of the highest quality/tinned with heat shrink connectors.
contact us for a quote or consultation
WEIGHT
535LBS
unrigged 100% carbon
MAX POWER
90HP
Length
18’0”
beam
6’8”
draft
7-8”
12 degree
